Sistema PA Attivo con Dsp Compatto 12 Pollici 2000W PA Attivo 12"
LD Systems DAVE 12 G3 è un sistema PA Attivo con dsp da12". Questo sistema si caratterizza principalmente per il suo LD LECC DSP ovvero l'elaborazione digitale del segnale che garantisce il controllo delle principali funzioni di sistema. Un subwoofer da 12", i satelliti con driver da 6,5" e tweeter a tromba, assicurano bassi potenti e definiti, medi naturali e alti puliti garantendo un suono di grande qualità. Il finale di potenza 2.1 è integrato nel subwoofer e alimenta i componenti di sistema con una potenza di picco di 2000 W. Per un accurato orientamento verticale dei satelliti, i supporti degli altoparlanti sono regolabili in verticale di ± 13,5 ° max.
E' dotato di nuovissime e innovative impugnature LD "Evolutive" del subwoofer che, con il loro anello metallico, garantiscono una comoda e pratica presa da tutti i lati. Robusti telai multiplex, collegamenti RCA, XLR/jack compatibili combo e Speakon, circuiti di protezione rendono questo sistema audio versatile, facile da allestire e con un suono di alta qualità e molto potente.
Un sistema audio amplificato dall'utilizzo assolutamente versatile, si presta sia per l'utilizzo mobile come presentazioni multimediali sia per installazioni fisse in bar, club e locali simili.
Caratteristiche Tecniche LD Systems DAVE 12 G3
- Sistema Audio Pa Amplificato
- SPL max (continuo): 119 dB
- SPL max (picco): 130 dB
- Risposta in frequenza: 40 - 19000 Hz
- Angolo di dispersione (H x V): 90 x 40 °
- Peso totale: 48,5 kg
- Colore: Nero
Subwoofer
- Dimensioni woofer: 12" - 304,8 mm
- Magnete woofer: Ferrite
- Marca woofer: Custom Made
- Bobina woofer: 2,5" - 63,5 mm
- Modello cassa: Bass reflex
- Materiale cassa: Compensato 15 mm in Vernice strutturata
- Dimensione (LxAxP): 435x500x540 mm
- Caratteristiche del subwoofer: Flangia filettata (M20) , Impugnature Evolutive LD Systems
Sistema toni medi/alti
- Dimensioni altoparlante toni medi: 6,5" - 165,1 mm
- Bobina altoparlante toni medi: 1,75" - 44,5 mm
- Tromba: A direttività costante
- Dimensioni tweeter: 1" - 25,4 mm
- Impedenza sistema toni medi/alti: 4 Ohm
- Ingressi altoparlante: 1
- Connessioni di ingresso dell'altoparlante: Speakon compatibile
- Modello cassa sistema toni medi/alti: Chiuso
- Materiale cassa sistema toni medi/alti: Compensato 15 mm
- Superficie cassa sistema toni medi/alti: Vernice strutturata
- Dimensione sistema toni medi/alti (LxAxP): 250x400x250 mm
- Flangia SM707 36 mm , Maniglie a incasso ergonomiche
Modulo amplificatore (integrato nel subwoofer)
- Amplifier: Classe AB
- Sistema performance amplificatore (RMS): 500 W
- Sistema performance amplificatore (picco): 2000 W
- Protezioni: Cortocircuito , Limitatore , Sovraccarico
- Raffreddamento: Ventole controllate attraverso il volume
- Elementi di comando: Power , Sub Level , Subwoofer Phase Reverse , Volume
- Indicatori: Limit , On/Off , Protect (protezione attiva) , Segnale
- Alimentazione: Trasformatore
- Tensione di esercizio: 220 V AC - 240 V AC
- Ingressi di linea: 2
- Connessioni di ingresso di linea: Jack da 6,3 mm , RCA , XLR
- Connessioni di uscita di linea: XLR
- Uscite altoparlante: 2
- Connessioni di uscita dell'altoparlante: Speakon compatibile
- Frequenza di campionamento interna: 1000 kHz
Maggiori Informazioni
| SKU | 80023 |
|---|---|
| BarCode | 4049521135811 |
| Modello | DAVE 12 G3 |
| Condizione | Nuovo |
Info produttore
Info aggiuntive
Spedizione Express Gratuita
Video

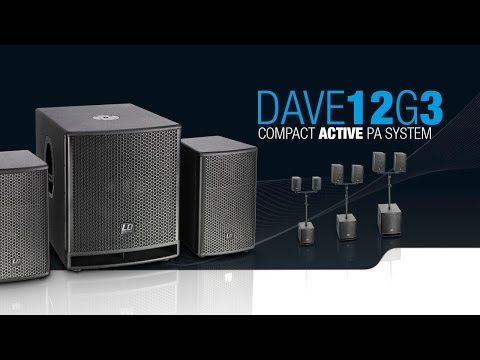

LD Systems DAVE 12 G3 - Compact 12" powered PA System
http://www.ld-systems.com/426-1-12-dave-g.html
This product video shows the LD Systems DAVE 12 G3 - Active PA-System with DSP
The new LD Systems DAVE 12 G3 is the perfect active PA system for high-powered live gigs, multimedia presentations, and permanent installations in bars and clubs. A 12" bass reflex subwoofer and the satellites with 6.5" drivers and HF horns ensure a good sound with driving, defined bass, natural mids, and clear treble. The 2.1 power amp stage is built into the subwoofer and provides the system components with 1x300W + 2x120W of continuous power.
The soul of the DAVE 12 G3 is the LD LECC DSP digital signal processor, which controls all important system functions. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.
The professional full range of features of the DAVE 12 G3 includes rugged multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are an important innovation with a metal ring handle that permits a secure and convenient grip from all sides. For accurate vertical orientation of the satellites, the speaker supports are vertically adjustable by ± 14° max. in three increments.
Protection covers for the system components and a castor board with a lashing strap for easy transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.
The DAVE 12 G3 system is ideally suited for portable use and also makes a great impression in permanent installations.
Type: active
Max. SPL Continuous: 119 dB
Max. SPL Peak: 130 dB
Frequency range: 40 - 19,000 Hz
Dispersion angle (H x V): 90 x 40°
More info:
http://www.ld-systems.com
http://www.facebook.com/ldsystems
http://blog.adamhall.com/en/blog/filter/brand/ld-systems
LD Systems® is a brand of the Adam Hall Group.
http://www.adamhall.com
LD Systems DAVE 12 G3 - Compact 12" powered PA System
http://www.ld-systems.com/426-1-12-dave-g.html
This product video shows the LD Systems DAVE 12 G3 - Active PA-System with DSP
The new LD Systems DAVE 12 G3 is the perfect active PA system for high-powered live gigs, multimedia presentations, and permanent installations in bars and clubs. A 12" bass reflex subwoofer and the satellites with 6.5" drivers and HF horns ensure a good sound with driving, defined bass, natural mids, and clear treble. The 2.1 power amp stage is built into the subwoofer and provides the system components with 1x300W + 2x120W of continuous power.
The soul of the DAVE 12 G3 is the LD LECC DSP digital signal processor, which controls all important system functions. It includes specially amplitude and low-latency optimised crossovers, separate equalisers and limiters for the bass, mid, and treble frequency ranges, and a dynamic compressor that controls the subwoofer according to volume and provides for increased punch at low volumes.
The professional full range of features of the DAVE 12 G3 includes rugged multiplex cabinets, all important protection circuits, RCA, XLR/jack combo and Speakon-compatible connectors, and ergonomically shaped, recessed handles. The LD "Evolutive" handles of the subwoofer are an important innovation with a metal ring handle that permits a secure and convenient grip from all sides. For accurate vertical orientation of the satellites, the speaker supports are vertically adjustable by ± 14° max. in three increments.
Protection covers for the system components and a castor board with a lashing strap for easy transport are available as accessories. Matching speaker stands, spacer tubes, and mounting forks are also available separately.
The DAVE 12 G3 system is ideally suited for portable use and also makes a great impression in permanent installations.
Type: active
Max. SPL Continuous: 119 dB
Max. SPL Peak: 130 dB
Frequency range: 40 - 19,000 Hz
Dispersion angle (H x V): 90 x 40°
More info:
http://www.ld-systems.com
http://www.facebook.com/ldsystems
http://blog.adamhall.com/en/blog/filter/brand/ld-systems
LD Systems® is a brand of the Adam Hall Group.
http://www.adamhall.com
