ADJ

ADJ 3D Vision Plus

Pannello effetto LED 3D esagonale

Codice prodotto: 321501

Pannello effetto LED 3D esagonale

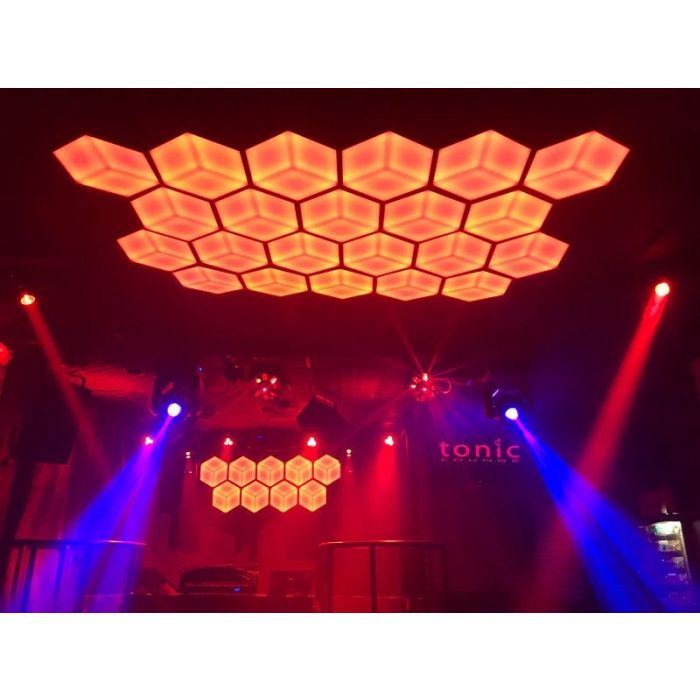

Il 3D Vision Plus ADJ è un pannello LED a forma esagonale con straordinari effetti visivi 3D se utilizzato in multipli. E' progettato per discoteche, lounge, bar, centri di intrattenimento, palchi e animatori mobili. Il 3D Vision Plus ha un sistema di menu a 4 pulsanti con display digitale. Può essere controllabile tramite DMX utilizzando un adattatore da DMX a RJ45. Può essere utilizzato anche con l'interfaccia EZ Kling per Artnet e KlingNet, controllo LED Master.

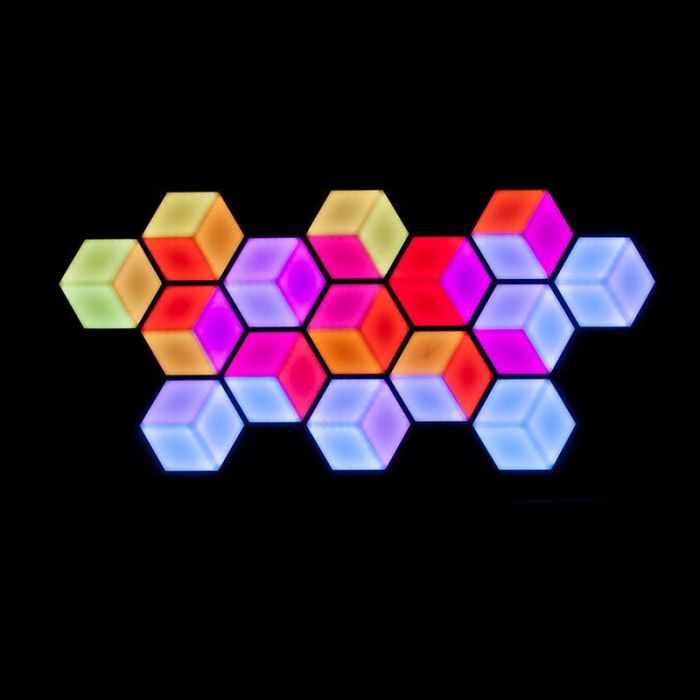

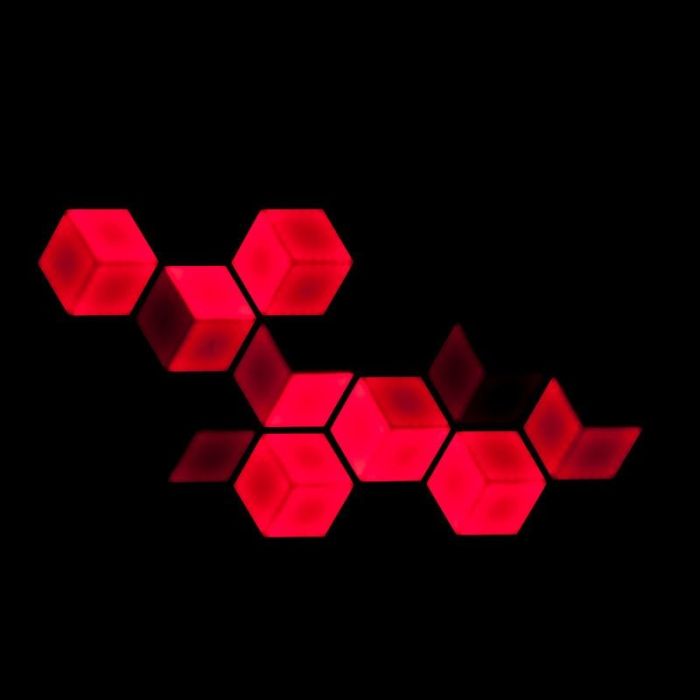

Grazie al design modulare di 3D Vision Plus, i pannelli possono essere utilizzati in isolamento o collegati tra loro su uno qualsiasi dei loro sei lati. Ciò significa che è possibile creare grandi superfici LED con effetto 3D in forme e configurazioni illimitate.

Specifiche:

  • 72 Pieces 3-in-1 RGB LEDs
  • Beam Angle: 180 Degrees

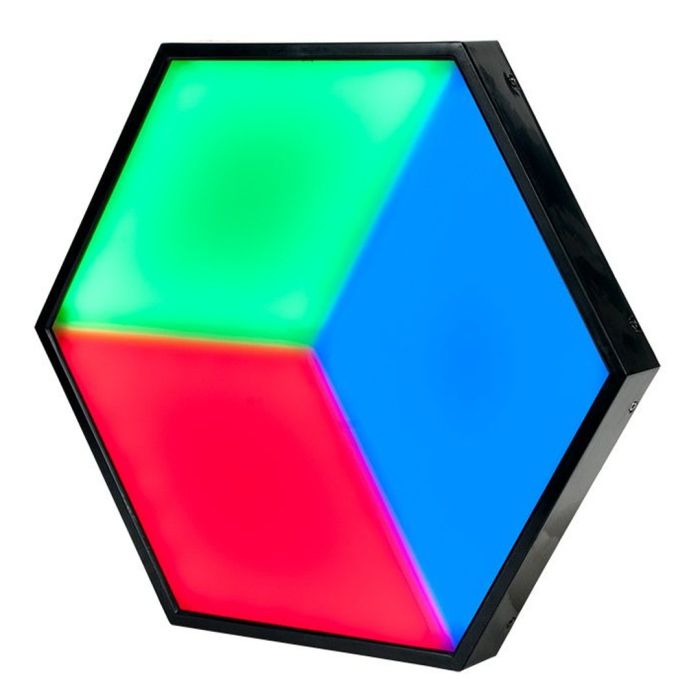

  • Distinctive hexagonal-shaped LED panel is divided into three separate sections in a way that gives it a unique three-dimensional appearance.

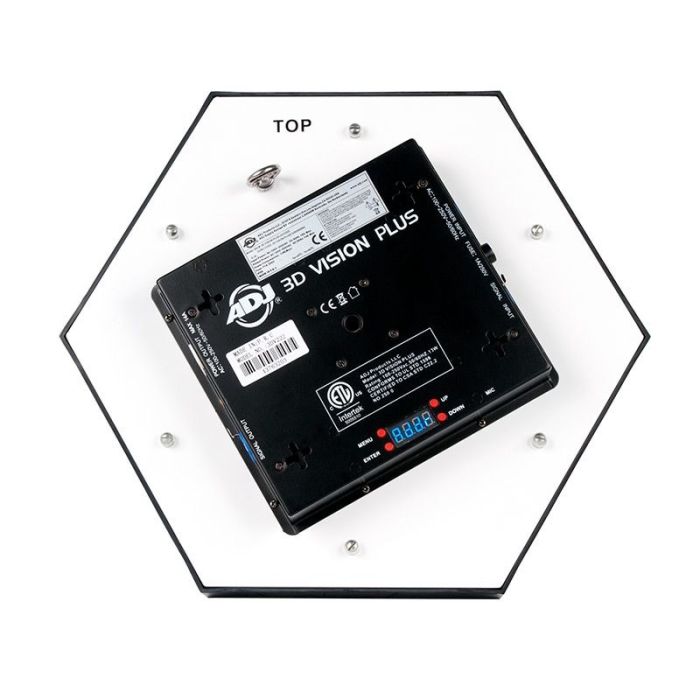

  • Safety hook on rear panel
  • M10 thread on rear panel to connect a clamp to secure to a pipe
  • Wall mount slots on rear panel
  • 3 Operating Modes: Sound Active Mode (with Sound Sensitivity Adjustment), Auto Run Mode (16 Programs with Speed Adjustment), DMX Control
  • 3 DMX Channel Modes: 3, 9, and 13 Channel Mode
  • Stand Alone or Primary/Secondary Configuration
  • 4-Button Menu with Digital Display
  • With Wired Digital Communication Network

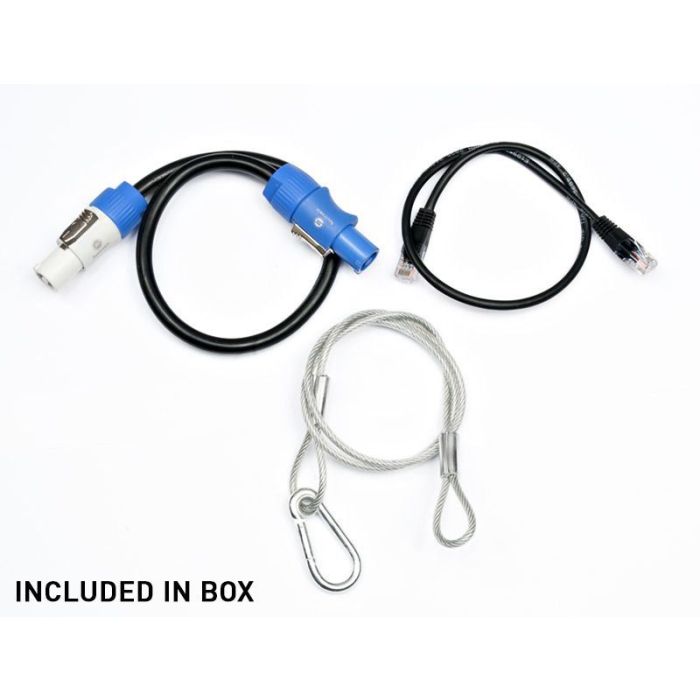

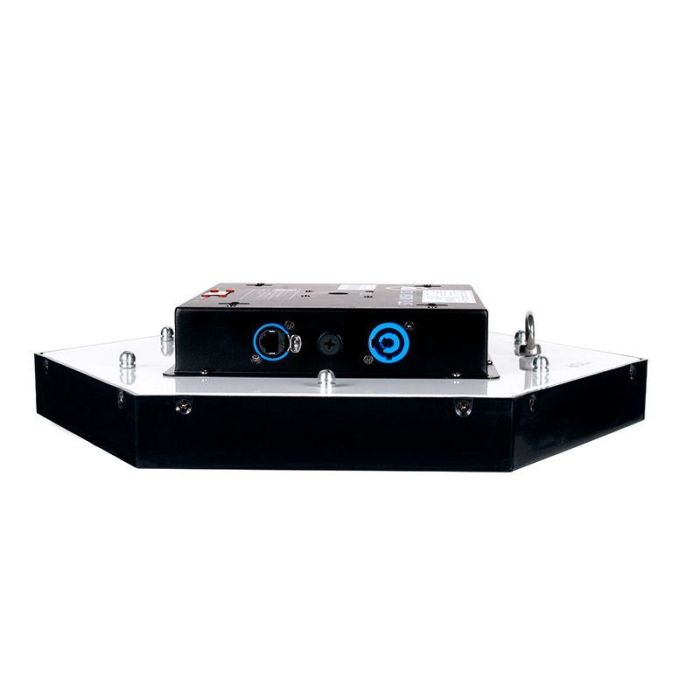

  • Locking power input/output to daisy chain power
  • RJ45 In/Out to link DMX data
  • Input Voltage: AC 100-250V, 50/60Hz
  • Dimensions (LxWXH): 80.5 x 404.7 x 350.7 mm
  • Weight: 2.74 Kg
Maggiori Informazioni
SKU321501
BarCode818651020908
Modello3D Vision Plus
CondizioneNuovo
ProduttoreADJ
Info produttore
Info aggiuntive
Spedizione Express Gratuita
Video
ADJ 3D Vision Plus
Facebook Live: 3D Vision Plus
Facebook Live: 3D Vision Plus
Check out this Facebook Live demo of the 3D Vision Plus with ADJ's Jose Heredia. The new 3D Vision Plus now comes with built-in DMX.
ADJ 3D Vision Plus
ADJ 3D Vision Plus

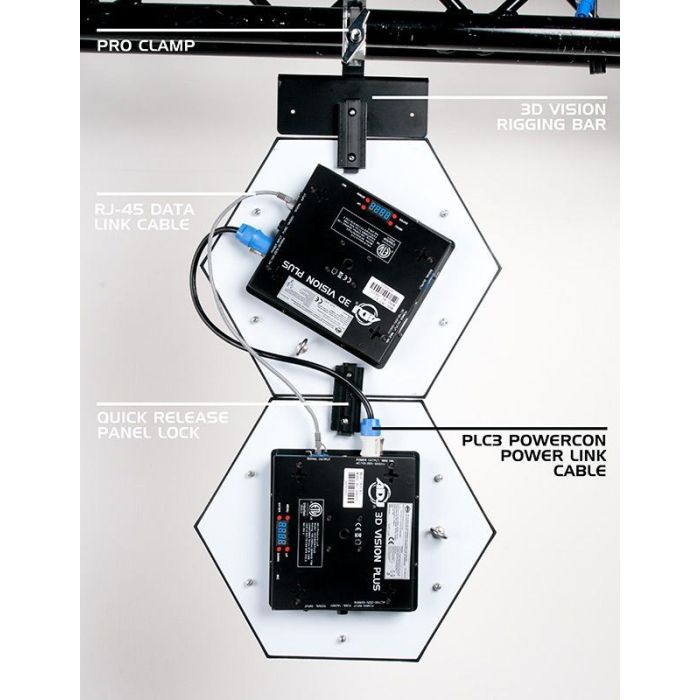

http://www.adj.com/3d-vision-plus The 3D Vision Plus is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. The 3D Vision Plus has a 4-Button menu system with a digital display. It may be controllable via DMX using a DMX to RJ45 adapter. It can also be used with EZ Kling interface for Artnet and KlingNet, LED Master control. Link multiple panels together via powerCon input/output with RJ45 ports for data linking. Panels lock together with an easy to use quick release panel lock. Rigging bars are also available for dead hang installation (M10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2-inch pipe). Measuring 15.8” x 15.8” (400mm x 400mm), the face of each 3D Vision Plus panel is covered with a frosted white acrylic panel which diffuses the light from the 72 3-in-1 RGB LEDs beneath. This creates an even spread of light within each of the three sections and gives the 3D vision a wide 180-degree viewing angle. Thanks to the 3D Vision Plus’ modular design, panels can be used in isolation or linked together at any of their six sides. This means that large 3D-effect LED surfaces can be created in unlimited shapes and configurations. For example, you could use a single line of panels attached to the front of a truss pillar to spice up a stage set, while a matrix of panels could be used to create an impressive backdrop.
